Woy Woy Leisure Centre - Swim Timing

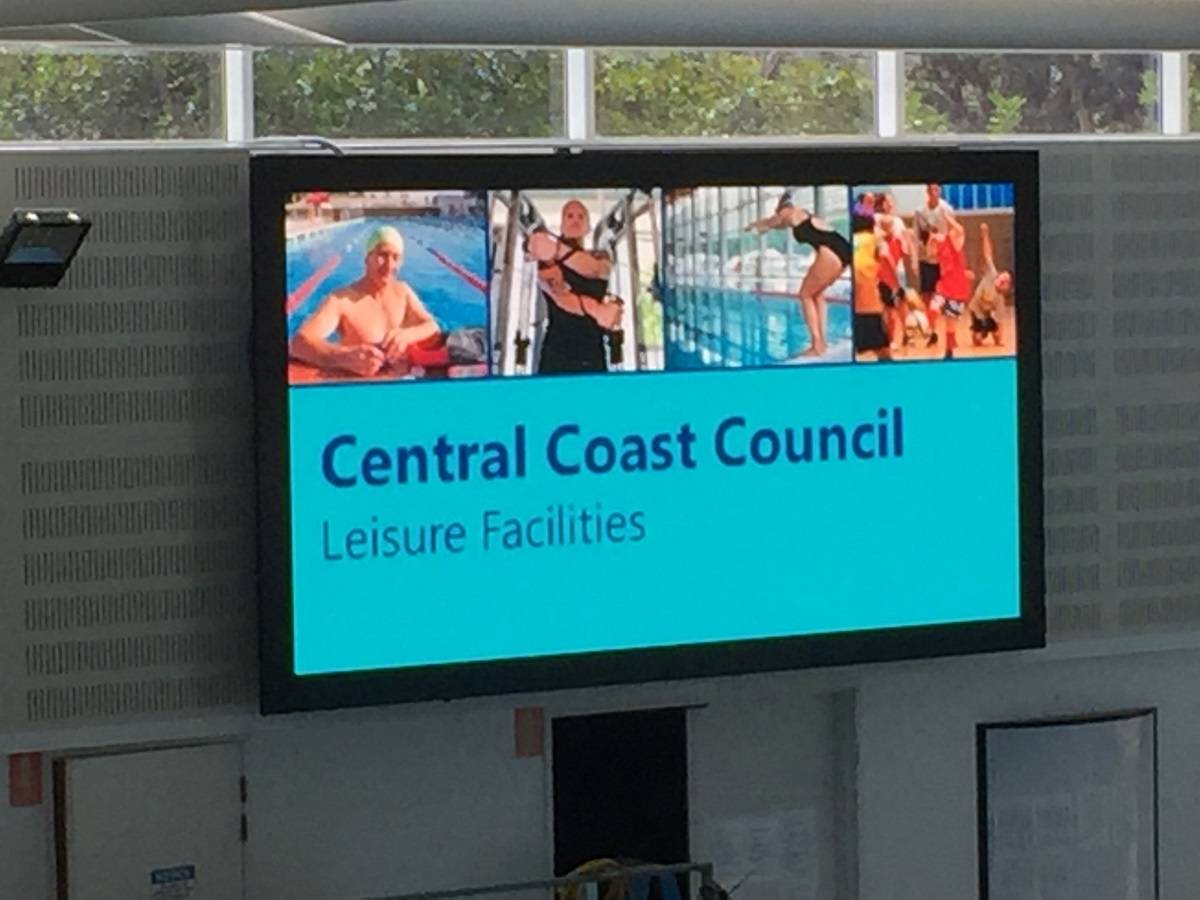

Woy Woy Leisure Centre - Centre Info Mode

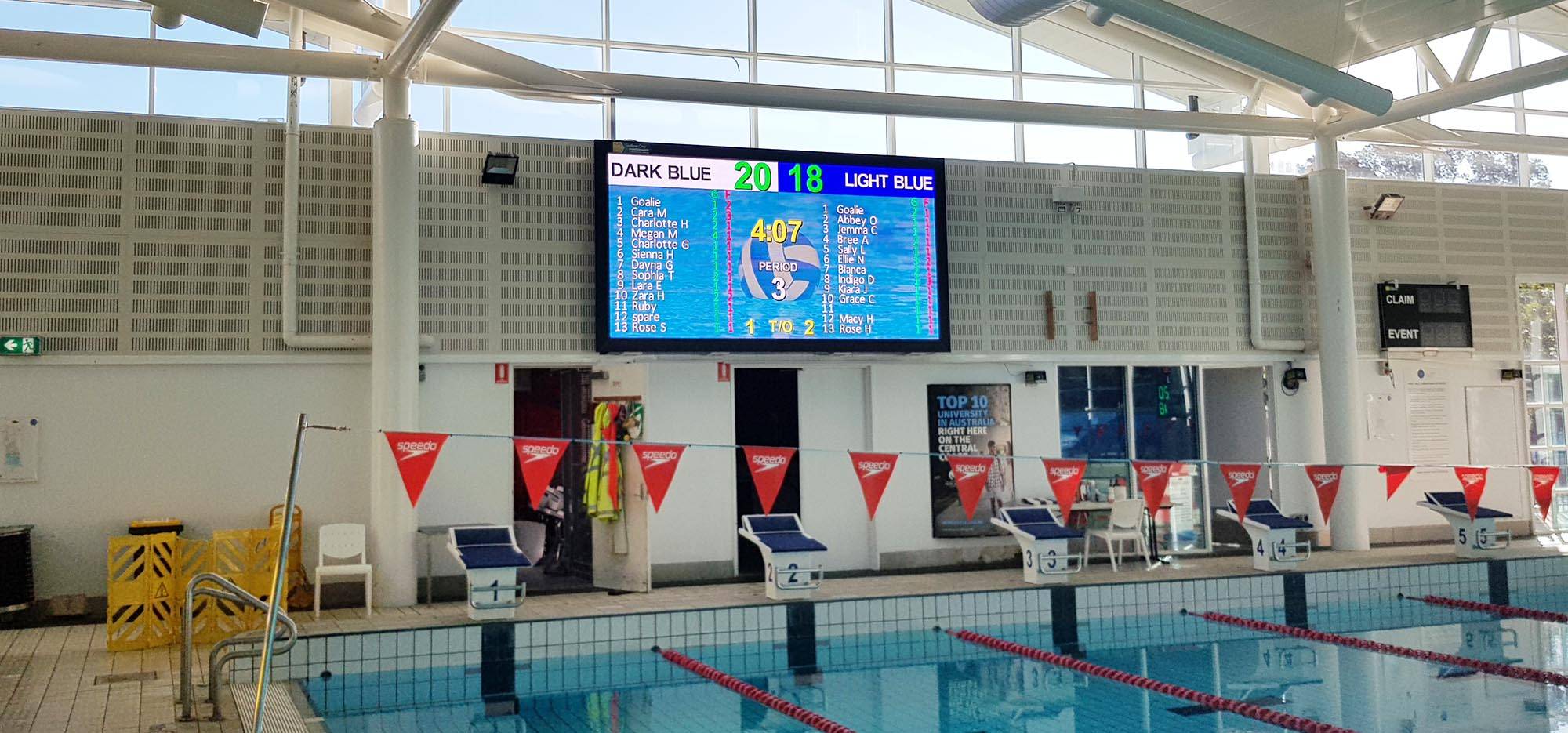

Woy Woy Leisure Centre - WaterPolo Mode
Make every moment a proud scoreboard moment.
For your Aquatic Centre we have a variety of options! Choose from our range of place, lane, time swimming scoreboard displays or an Aquatic centre LED screen capable of displaying results, information and sponsors! Our electronic Aquatic scoreboard options are reliable and durable due to cutting edge materials and software and use the best LED technology. The polycarbonate on our scoreboards and the IP-65 protective coating on our LED screens, ensures protection from rust and corrosion in aquatic environments. Not only will your scoreboard last the test of time but it will compliment your swim centre and support your local athletes as well.
Aquatic Scoreboard Range
Model: SCSW-PLT1
Aquatic Scoreboard with Place, Lane and Time.
- 6 digit resettable lane timer with minutes, seconds and 100ths.
- Place to 19.
- Lane to 19.
- Vinyl sign writing PLACE, LANE, TIME (optional modifications).
- Premium multi-colour LED technology.
- Control via computing system.
- Weatherproof durable powder coated aluminium enclosure, ensuring protection in pool environments.
- Vandal resistant polycarbonate front window.
- Internal access via removable front window from the right hand end.
- Optional inclusion 12v internal siren.
| MODEL | Scores Height | Dimensions (mm) | Max Viewing | Approx Weight |
| SCSW-100-PLT1 | 100 mm | 1700 x 400 | 50 m | TBC |
| SCSW-150-PLT1 | 150 mm | 1800 x 400 | 75 m | TBC |
| SCSW-265-PLT1 | 265 mm | 2700 x 600 | 100 m | 50 kg |
| SCSW-300-PLT1 | 300 mm | 3500 x 700 | 150 m | 70 kg |
| SCSW-380-PLT1 | 380 mm | 4000 x 750 | 190 m | TBC |
| SCSW-500-PLT1 | 500 mm | 5000 x 950 | 300 m | TBC |
- Personalise with a vinyl club or sponsorship logo.
- Internal 12v siren.
- External weatherproof powerpoint.
- Trolley mounted.
- Battery powered.
- Scrolling LED message area.
- Customised layout and orientation of scoreboard.

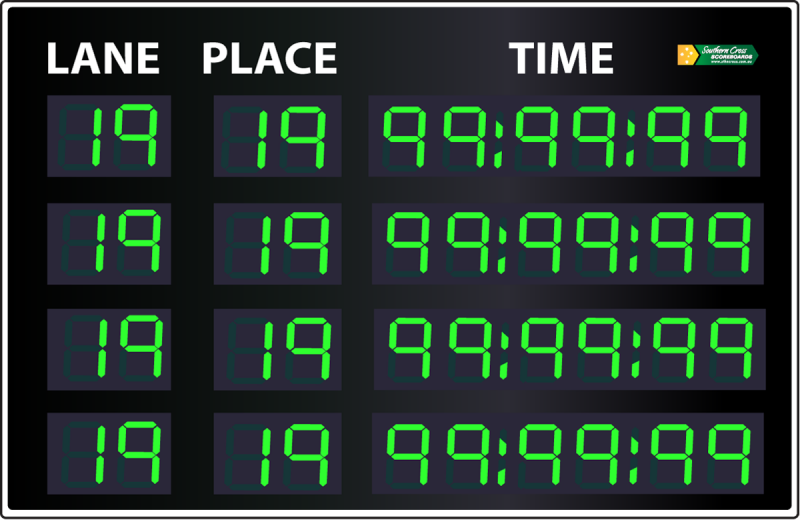

Model: SCSW-PLT4
Aquatic Scoreboard with 4 x Place, Lane and Time.
- 4 x 6 digit resettable lane timer with minutes, seconds and 100ths.
- 4 x Place to 19.
- 4 x Lane to 19.
- Vinyl sign writing PLACE, LANE, TIME (optional modifications).
- Premium multi-colour LED technology.
- Control via computing system.
- Weatherproof durable powder coated aluminium enclosure, ensuring protection in pool environments.
- Vandal resistant polycarbonate front window.
- Internal access via removable front window from the right hand end.
- Optional inclusion 12v internal siren.
| MODEL | Scores Height | Dimensions (mm) | Max Viewing | Approx Weight |
| SCSW-100-PLT4 | 100 mm | 1700 x 1200 | 50 m | TBC |
| SCSW-150-PLT4 | 150 mm | 1800 x 1300 | 75 m | TBC |
| SCSW-265-PLT4 | 265 mm | 2700 x 1800 | 100 m | TBC |
| SCSW-300-PLT4 | 300 mm | 3500 x 2000 | 150 m | TBC |
| SCSW-380-PLT4 | 380 mm | 4000 x 2250 | 190 m | TBC |
| SCSW-500-PLT4 | 500 mm | 5000 x 2800 | 300 m | TBC |
- Personalise with a vinyl club or sponsorship logo.
- Internal 12v siren.
- External weatherproof powerpoint.
- Trolley mounted.
- Battery powered.
- Scrolling LED message area.
- Customised layout and orientation of scoreboard.

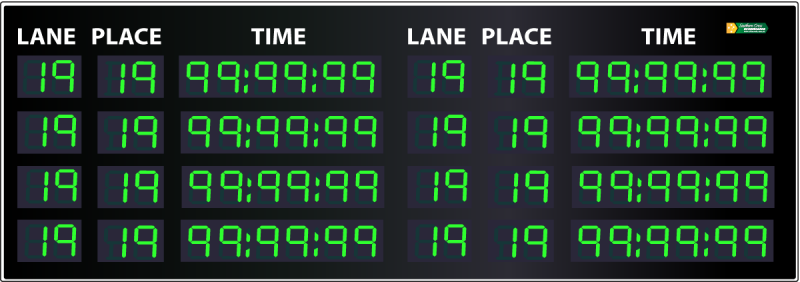

Model: SCSW-PLT8
Aquatic Scoreboard with 8 x Place, Lane and Time.
- 8 x 6 digit resettable lane timer with minutes, seconds and 100ths.
- 8 x Place to 19.
- 8 x Lane to 19.
- Vinyl sign writing PLACE, LANE, TIME (optional modifications).
- Premium multi-colour LED technology.
- Control via computing system.
- Weatherproof durable powder coated aluminium enclosure, ensuring protection in pool environments.
- Vandal resistant polycarbonate front window.
- Internal access via removable front window from the right hand end.
- Optional inclusion 12v internal siren.
| MODEL | Scores Height | Dimensions (mm) | Max Viewing | Approx Weight |
| SCSW-100-PLT8 | 100 mm | 2700 x 1200 | 50 m | TBC |
| SCSW-150-PLT8 | 150 mm | 3500 x 1300 | 75 m | TBC |
| SCSW-265-PLT8 | 265 mm | 6000 x 1800 | 100 m | TBC |
| SCSW-300-PLT8 | 300 mm | 6500 x 2000 | 150 m | TBC |
| SCSW-380-PLT8 | 380 mm | 7500 x 2250 | 190 m | TBC |
- Personalise with a vinyl club or sponsorship logo.
- Internal 12v siren.
- External weatherproof powerpoint.
- Trolley mounted.
- Battery powered.
- Scrolling LED message area.
- Customised layout and orientation of scoreboard.

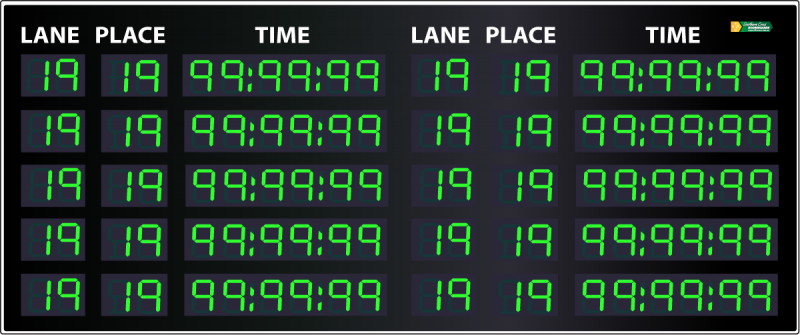

Model: SCSW-PLT10
Aquatic Scoreboard with 10 x Place, Lane and Time.
- 10 x 6 digit resettable lane timer with minutes, seconds and 100ths.
- 10 x Place to 19.
- 10 x Lane to 19.
- Vinyl sign writing PLACE, LANE, TIME (optional modifications).
- Premium multi-colour LED technology.
- Control via computing system.
- Weatherproof durable powder coated aluminium enclosure, ensuring protection in pool environments.
- Vandal resistant polycarbonate front window.
- Internal access via removable front window from the right hand end.
- Optional inclusion 12v internal siren.
| MODEL | Scores Height | Dimensions (mm) | Max Viewing | Approx Weight |
| SCSW-100-PLT10 | 100 mm | 2700 x 1500 | 50 m | TBC |
| SCSW-150-PLT10 | 150 mm | 3500 x 1600 | 75 m | TBC |
| SCSW-265-PLT10 | 265 mm | 6000 x 2100 | 100 m | TBC |
| SCSW-300-PLT10 | 300 mm | 6500 x 2300 | 150 m | TBC |
- Personalise with a vinyl club or sponsorship logo.
- Internal 12v siren.
- External weatherproof powerpoint.
- Trolley mounted.
- Battery powered.
- Scrolling LED message area.
- Customised layout and orientation of scoreboard.
Model: SCMAT-P7
Aquatic LED Screen Scoreboard.
- Southern Cross Aquatic scoring software.
- Multi-functional use software for scoring, information display, advertising, and entertainment.
- LED screen control computing system.
- Premium multi colour SMD LED technology.
- Brightness to 6000nits.
- Full sunlight visibility.
- Weatherproof durable powder coated aluminium enclosure.
- IP-65 protective waterproof mask coated on front LED’s. Ensuring protection in pool environments.
- Optional inclusion 12v internal siren.
| MODEL | Width (mm) | Height (mm) | Resolution (px) | Max Viewing | Live video capable | Approx Weight |
| SCMAT-P7-xw-1h | x | 1000 | X x 143 | 40m | No | NA |
| SCMAT-P7-2w-1h | 2000 | 1000 | 286 x 143 | 40m | No | 60kg |
| SCMAT-P7-2w-1.5h | 2000 | 1500 | 286 x 214 | 70m | No | 90kg |
| SCMAT-P7-3w-1h | 3000 | 1000 | 429 x 143 | 70m | No | 90kg |
| SCMAT-P7-3w-1.5h | 3000 | 1500 | 429 x 214 | 80m | Yes | 135kg |
| SCMAT-P7-3w-2h | 3000 | 2000 | 429 x 286 | 80m | Yes | 180kg |
| SCMAT-P7-3.5w-1.5h | 3500 | 1500 | 500 x 214 | 80m | Yes | 158kg |
| SCMAT-P7-3.5w-2h | 3500 | 2000 | 500 x 286 | 80m | Yes | 210kg |
| SCMAT-P7-4w-1.5h | 4000 | 1500 | 571 x 214 | 80m | Yes | 180kg |
| SCMAT-P7-4w-2h | 4000 | 2000 | 571 x 286 | 80m | Yes | 240kg |
| SCMAT-P7-4w-2.5h | 4000 | 2500 | 571 x 357 | 100m | 1Yes | 300kg |
| SCMAT-P7-4.5w-2h | 4500 | 2000 | 643 x 286 | 100m | Yes | 270kg |
| SCMAT-P7-4.5w-2.5h | 4500 | 2500 | 643 x 357 | 100m | Yes | 338kg |
| SCMAT-P7-4.5w-3h | 4500 | 3000 | 643 x 429 | 130m | Yes | 405kg |
| SCMAT-P7-5w-2.5h | 5000 | 2500 | 714 x 357 | 130m | Yes | 375kg |
| SCMAT-P7-5w-3h | 5000 | 3000 | 714 x 429 | 130m | Yes | 450kg |
| SCMAT-P7-6w-3h | 6000 | 3000 | 857 x 429 | 150m | Yes | 540kg |
| SCMAT-P7-6w-4h | 6000 | 4000 | 857 x 571 | 150m | Yes | 720kg |
| SCMAT-P7-6w-5h | 6000 | 5000 | 857 x 714 | 150m | Yes | 900kg |
| SCMAT-P7-7w-3h | 7000 | 3000 | 1000 x 429 | 150m | Yes | 630kg |
| SCMAT-P7-7w-4h | 7000 | 4000 | 1000 x 571 | 150m | Yes | 840kg |
| SCMAT-P7-7w-5h | 7000 | 5000 | 1000 x 714 | 150m | Yes | 1050kg |
| SCMAT-P7-8w-4h | 8000 | 4000 | 1143 x 571 | 180m | Yes | 960kg |
| SCMAT-P7-8w-5h | 8000 | 5000 | 1143 x 714 | 180m | Yes | 1200kg |
| SCMAT-P7-8w-6h | 8000 | 6000 | 1143 x 857 | 180m | Yes | 1440kg |
| SCMAT-P7-9w-5h | 9000 | 5000 | 1286 x 714 | 180m | Yes | 1350kg |
| SCMAT-P7-9w-6h | 9000 | 6000 | 1286 x 857 | 180m | Yes | 1620kg |
| SCMAT-P7-10w-5h | 10000 | 5000 | 1429 x 714 | 180m | Yes | 1500kg |
| SCMAT-P7-10w-6h | 10000 | 6000 | 1429 x 857 | 180m | Yes | 1800kg |
| SCMAT-P7-10w-7h | 10000 | 7000 | 1429 x 1000 | 180m | Yes | 2100kg |
| SCMAT-P7-11w-5h | 11000 | 5000 | 1571 x 714 | 180m | Yes | 1650kg |
| SCMAT-P7-11w-6h | 11000 | 6000 | 1571 x 857 | 200m | Yes | 1980kg |
| SCMAT-P7-11w-7h | 11000 | 7000 | 1571 x 1000 | 200m | Yes | 2310kg |
| SCMAT-P7-11w-8h | 11000 | 8000 | 1571 x 1143 | 200m | Yes | 2640kg |
- Multi-sport software.
- Support structure.
- Installation.
- Internal 12v siren.
- Add an additional character board to your scoring or entertainment system.
- Multiple screen solutions.
- Customised layout and orientation of scoreboard.
All our LED screens are programmable to be multi-functional displays. LED screens can be used for various activities including:
- Sport Scoreboards.
- AFL
- Football
- Hockey
- Basketball
- Cricket
- Netball
- Rugby Union
- Rugby League
- Volleyball
- Waterpolo
- Aquatic
- Athletics
- Baseball
- Tennis
- Indoor Sports
- Information Display.
- Entertainment Display.
- Advertising Display.
- Sponsorship Display.
Model: SCMAT-P4
Aquatic LED Screen Scoreboard.
- Southern Cross Aquatic scoring software.
- Multi-functional use software for scoring, information display, advertising, and entertainment.
- LED screen control computing system.
- Premium multi colour SMD LED technology.
- Brightness to 900nits.
- Full sunlight visibility.
- Weatherproof durable powder coated aluminium enclosure.
- IP-65 protective waterproof mask coated on front LED’s. Ensuring protection in pool environments.
- Optional inclusion 12v internal siren.
| MODEL | Width (mm) | Height (mm) | Resolution (px) | Max Viewing | Live video capable | Approx Weight |
| SCMAT-P4-xw-1h | x | 1000 | X x 250 | 40m | No | NA |
| SCMAT-P4-2w-1h | 2000 | 1000 | 500 x 250 | 40m | No | 60kg |
| SCMAT-P4-2w-1.5h | 2000 | 1500 | 500 x 375 | 70m | No | 90kg |
| SCMAT-P4-3w-1h | 3000 | 1000 | 750 x 250 | 70m | No | 90kg |
| SCMAT-P4-3w-1.5h | 3000 | 1500 | 750 x 375 | 80m | Yes | 135kg |
| SCMAT-P4-3w-2h | 3000 | 2000 | 750 x 500 | 80m | Yes | 180kg |
| SCMAT-P4-3.5w-1.5h | 3500 | 1500 | 875 x 375 | 80m | Yes | 158kg |
| SCMAT-P4-3.5w-2h | 3500 | 2000 | 875 x 500 | 80m | Yes | 210kg |
| SCMAT-P4-4w-1.5h | 4000 | 1500 | 1000 x 375 | 80m | Yes | 180kg |
| SCMAT-P4-4w-2h | 4000 | 2000 | 1000 x 500 | 80m | Yes | 240kg |
| SCMAT-P4-4w-2.5h | 4000 | 2500 | 1000 x 625 | 100m | Yes | 300kg |
| SCMAT-P4-4.5w-2h | 4500 | 2000 | 1125 x 500 | 100m | Yes | 270kg |
| SCMAT-P4-4.5w-2.5h | 4500 | 2500 | 1125 x 625 | 100m | Yes | 338kg |
| SCMAT-P4-4.5w-3h | 4500 | 3000 | 1125 x 750 | 130m | Yes | 405kg |
| SCMAT-P4-5w-2.5h | 5000 | 2500 | 1250 x 625 | 130m | Yes | 375kg |
| SCMAT-P4-5w-3h | 5000 | 3000 | 1250 x 750 | 130m | Yes | 450kg |
| SCMAT-P4-6w-3h | 6000 | 3000 | 1500 x 750 | 150m | Yes | 540kg |
| SCMAT-P4-6w-4h | 6000 | 4000 | 1500 x 1000 | 150m | Yes | 720kg |
| SCMAT-P4-6w-5h | 6000 | 5000 | 1500 x 1250 | 150m | Yes | 900kg |
| SCMAT-P4-7w-3h | 7000 | 3000 | 1750 x 750 | 150m | Yes | 630kg |
| SCMAT-P4-7w-4h | 7000 | 4000 | 1750 x 1000 | 150m | Yes | 840kg |
| SCMAT-P4-7w-5h | 7000 | 5000 | 1750 x 1250 | 150m | Yes | 1050kg |
| SCMAT-P4-8w-4h | 8000 | 4000 | 2000 x 1000 | 180m | Yes | 960kg |
| SCMAT-P4-8w-5h | 8000 | 5000 | 2000 x 1250 | 180m | Yes | 1200kg |
| SCMAT-P4-8w-6h | 8000 | 6000 | 2000 x 1500 | 180m | 1Yes | 1440kg |
| SCMAT-P4-9w-5h | 9000 | 5000 | 2250 x 1250 | 180m | Yes | 1350kg |
| SCMAT-P4-9w-6h | 9000 | 6000 | 2250 x 1500 | 180m | Yes | 1620kg |
| SCMAT-P4-10w-5h | 10000 | 5000 | 2500 x 1250 | 180m | Yes | 1500kg |
| SCMAT-P4-10w-6h | 10000 | 6000 | 2500 x 1500 | 180m | Yes | 1800kg |
| SCMAT-P4-10w-7h | 10000 | 7000 | 2500 x 1750 | 180m | Yes | 2100kg |
| SCMAT-P4-11w-5h | 11000 | 5000 | 2750 x 1250 | 180m | Yes | 1650kg |
| SCMAT-P4-11w-6h | 11000 | 6000 | 2750 x 1500 | 200m | Yes | 1980kg |
| SCMAT-P4-11w-7h | 11000 | 7000 | 2750 x 1750 | 200m | Yes | 2310kg |
| SCMAT-P4-11w-8h | 11000 | 8000 | 2750 x 2000 | 200m | Yes | 2640kg |
- Multi-sport software.
- Support structure.
- Installation.
- 12v Internal Siren
- Add an additional character board to your scoring or entertainment system.
- Multiple screen solutions.
- Customised layout and orientation of scoreboard.
All our LED screens are programmable to be multi-functional displays. LED screens can be used for various activities including:
- Sport Scoreboards.
- AFL
- Football
- Hockey
- Basketball
- Cricket
- Netball
- Rugby Union
- Rugby League
- Volleyball
- Waterpolo
- Aquatic
- Athletics
- Baseball
- Tennis
- Indoor Sports
- Information Display.
- Entertainment Display.
- Advertising Display.
- Sponsorship Display.
LED Technology Ahead Of The Game, So You Can Be Too!
Learn About Our LED Screens
Our products are designed and manufactured to withstand extreme conditions.
Contact Us
Our professional staff are available to discuss your display requirements.
