Make every moment a proud scoreboard moment.
For your Baseball Pitch we have a variety of options!
Choose from a simple sports scoreboard with game clock, score and innings or a Baseball Scoreboard LED screen with the ability to display scores, venue information, entertainment and sponsors! Our electronic baseball scoreboards are reliable and durable due to cutting edge materials and software and use the best LED technology. Not only will your scoreboard last the test of time but it will compliment your club venue and support your local team as well!
Baseball Scoreboard Range

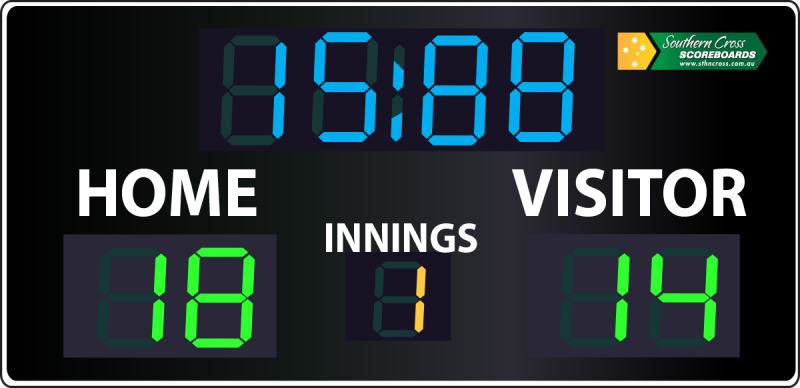

Model: SCBA
Baseball Scoreboard with Home and Visitor scores to 99 with game clock and innings.
- A 4 digit resettable Game Clock with minute and second adjustments.
- Team scores to 99.
- Innings to 9.
- Vinyl sign writing HOME, VISITOR, INNINGS (optional modifications).
- Premium multi-colour LED technology.

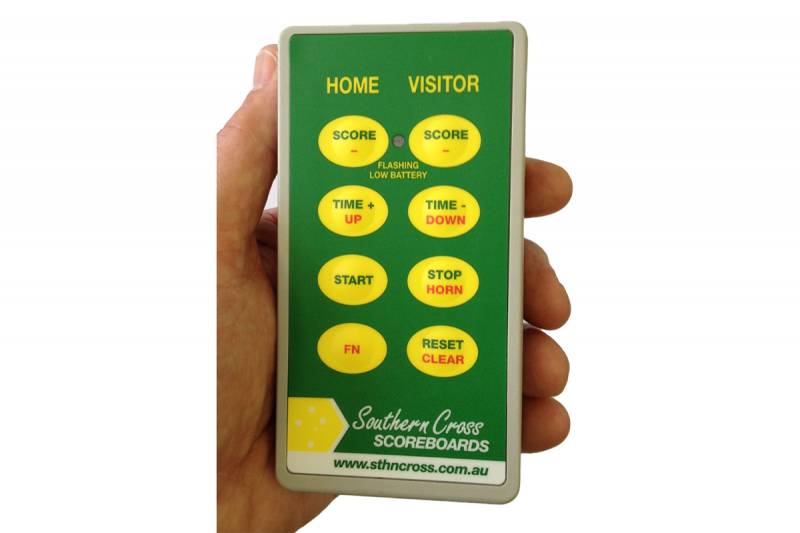

- Control via wireless remote control.
- Weatherproof durable powder coated aluminium enclosure.
- Vandal resistant polycarbonate front window.
- Internal access via removable front window from the right hand end.
- Optional inclusion 12v external siren.
| MODEL | Scores Height | Dimensions (mm) | Max Viewing | Approx Weight |
| SCBA-150 | 150 mm | 1200 x 750 | 75 m | 40kg |
| SCBA-265 | 265 mm | 2400 x 1200 | 100 m | 70kg |
| SCBA-300 | 300 mm | 2400 x 1200 | 150 m | 80 kg |
| SCBA-380 | 380 mm | 2500 x 1500 | 190 m | 95 kg |
| SCBA-500 | 500 mm | 3000 x 1600 | 300 m | 120kg |
- Personalise with a vinyl club or sponsorship logo.
- External 12v siren.
- External weatherproof powerpoint.
- Trolley mounted.
- Battery powered.
- Scrolling LED message area.
- Customised layout and orientation of scoreboard.

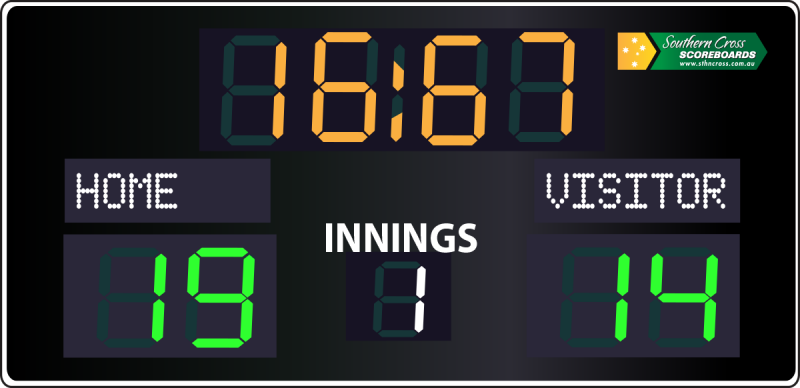

Model: SCBA-N
Baseball Scoreboard with Home and Visitor scores to 99, game clock and innings with LED team names.
- A 4 digit resettable Game Clock with minute and second adjustments.
- Team scores to 99.
- Innings to 9.
- Electronic LED team names (Team names stored in scoreboard memory).
- Vinyl sign writing INNINGS (optional modifications).
- Premium multi-colour LED technology.
- Control via wireless remote control.
- Weatherproof durable powder coated aluminium enclosure.
- Vandal resistant polycarbonate front window.
- Internal access via removable front window from the right hand end.
- Optional inclusion 12v external siren.
| MODEL | Scores Height | Team name Height | Dimensions (mm) | Max Viewing |
| SCBA-150-N150 | 150 mm | 150m | 2200 x 900 | 75 m |
| SCBA-265-N150 | 265 mm | 150m | 2400 x 1200 | 100 m |
| SCBA-300-N150 | 300 mm | 150m | 2400 x 1200 | 150 m |
| SCBA-380-N150 | 380 mm | 150m | 2500 x 1500 | 190 m |
| SCBA-500-N150 | 500 mm | 150m | 3000 x 1600 | 300 m |
- Personalise with a vinyl club or sponsorship logo.
- External 12v siren.
- External weatherproof powerpoint.
- Trolley mounted.
- Battery powered.
- Scrolling LED message area.
- Customised layout and orientation of scoreboard.

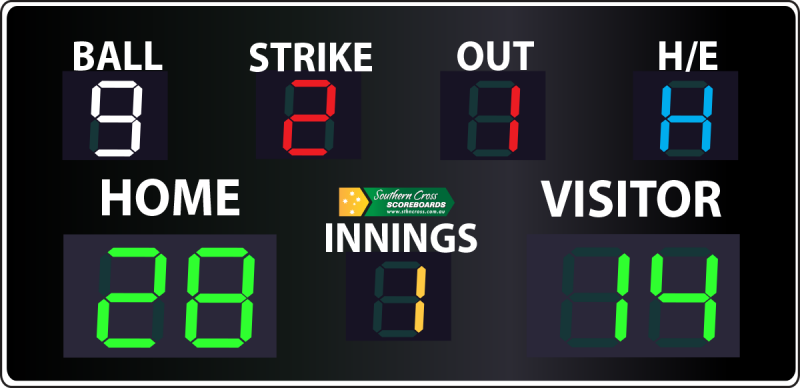

Model: SCBA-BSOH-SO
Baseball Scoreboard with Home and Visitor scores to 99, ball, strike, out, H/E and innings.
- Team scores to 99.
- Innings to 9.
- Balls to 9.
- Strikes to 9.
- Outs to 9.
- H/E Display.
- Vinyl sign writing HOME, VISITOR, BALLS, STRIKE, OUT, H/E, INNING (optional modifications).
- Premium multi-colour LED technology.
- Control via wireless remote control.
- Weatherproof durable powder coated aluminium enclosure.
- Vandal resistant polycarbonate front window.
- Internal access via removable front window from the right hand end.
- Optional inclusion 12v external siren.
| MODEL | Scores Height | Dimensions (mm) | Max Viewing |
| SCBA-100-BSOH-SO | 100 mm | 1200 x 900 | 50 m |
| SCBA-150-BSOH-SO | 150 mm | 1500 x 900 | 75 m |
| SCBA-265-BSOH-SO | 265 mm | 2200 x 1200 | 100 m |
| SCBA-300-BSOH-SO | 300 mm | 2400 x 1200 | 150 m |
| SCBA-380-BSOH-SO | 380 mm | 2500 x 1500 | 190 m |
| SCBA-500-BSOH-SO | 500 mm | 3000 x 1600 | 300 m |
- Personalise with a vinyl club or sponsorship logo.
- External 12v siren.
- External weatherproof powerpoint.
- Trolley mounted.
- Battery powered.
- Scrolling LED message area.
- Customised layout and orientation of scoreboard.

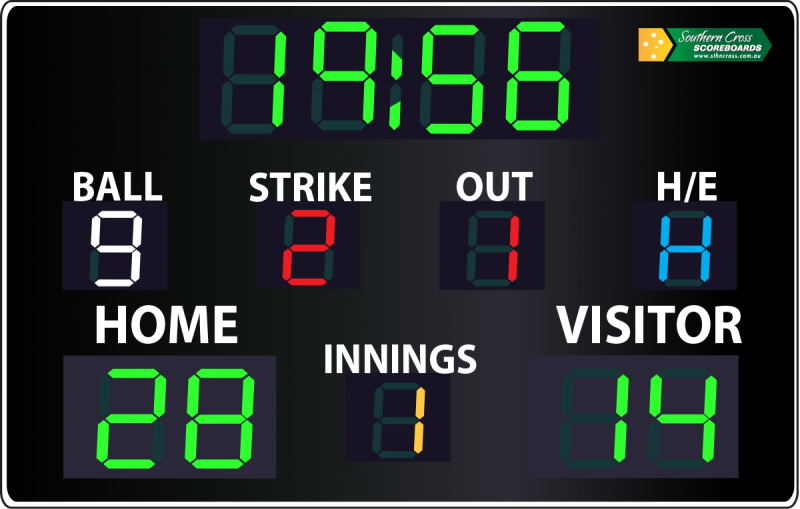

Model: SCBA-BSOH
Baseball Scoreboard with Home and Visitor scores to 99, ball, strike, out, H/E and innings with game clock.
- A 4 digit resettable Game Clock with minute and second adjustments.
- Team scores to 99.
- Innings to 9.
- Balls to 9.
- Strikes to 9.
- Outs to 9.
- H/E Display.
- Vinyl sign writing HOME, VISITOR, BALLS, STRIKE, OUT, H/E, INNING (optional modifications).
- Premium multi-colour LED technology.
- Control via wireless remote control.
- Weatherproof durable powder coated aluminium enclosure.
- Vandal resistant polycarbonate front window.
- Internal access via removable front window from the right hand end.
- Optional inclusion 12v external siren.
| MODEL | Scores Height | Dimensions (mm) | Max Viewing |
| SCBA-100-BSOH | 100 mm | 1200 x 1000 | 50 m |
| SCBA-150-BSOH | 150 mm | 1500 x 1100 | 75 m |
| SCBA-265-BSOH | 265 mm | 2400 x 1500 | 100 m |
| SCBA-300-BSOH | 300 mm | 2400 x 1600 | 150 m |
| SCBA-380-BSOH | 380 mm | 2500 x 1850 | 190 m |
| SCBA-500-BSOH | 500 mm | 3000 x 2200 | 300 m |
- Personalise with a vinyl club or sponsorship logo.
- External 12v siren.
- External weatherproof powerpoint.
- Trolley mounted.
- Battery powered.
- Scrolling LED message area.
- Customised layout and orientation of scoreboard.
Model: SCBA-BSOH-N
Baseball Scoreboard with Home and Visitor scores to 99, ball, strike, out, H/E and innings with game clock and LED team names
- A 4 digit resettable Game Clock with minute and second adjustments.
- Team scores to 99.
- Innings to 9.
- Balls to 9.
- Strikes to 9.
- Outs to 9.
- H/E Display.
- Electronic LED team names (Team names stored in scoreboard memory).
- Vinyl sign writing BALLS, STRIKE, OUT, H/E, INNING (optional modifications).
- Premium multi-colour LED technology.
- Control via wireless remote control.
- Weatherproof durable powder coated aluminium enclosure.
- Vandal resistant polycarbonate front window.
- Internal access via removable front window from the right hand end.
- Optional inclusion 12v external siren.
| MODEL | Scores Height | Team name Height | Dimensions (mm) | Max Viewing |
| SCBA-100-BSOH-N150 | 100 mm | 150 mm | 2200 x 1200 | 50 m |
| SCBA-150-BSOH-N150 | 150 mm | 150 mm | 2200 x 1300 | 75 m |
| SCBA-265-BSOH-N150 | 265 mm | 150 mm | 2400 x 1700 | 100 m |
| SCBA-300-BSOH-N150 | 300 mm | 150 mm | 2400 x 1800 | 150 m |
| SCBA-380-BSOH-N150 | 380 mm | 150 mm | 2500 x 2050 | 190 m |
| SCBA-500-BSOH-N150 | 500 mm | 150 mm | 300 x 2400 | 300 m |
- Personalise with a vinyl club or sponsorship logo.
- External 12v siren.
- External weatherproof powerpoint.
- Trolley mounted.
- Battery powered.
- Scrolling LED message area.
- Customised layout and orientation of scoreboard.
Model: SCMAT-P10
Baseball LED Screen Scoreboard.
- Southern Cross Baseball scoring software.
- Multi-functional use software for scoring, information display, advertising, and entertainment.
- LED screen control computing system.
- Premium multi colour DIP LED technology.
- Brightness to 7500nits.
- Full sunlight visibility.
- Weatherproof durable powder coated aluminium enclosure.
- IP-65 protective waterproof mask coated on front LED’s.
- Optional inclusion 12v external siren.
| MODEL | Width (mm) | Height (mm) | Resolution (px) | Max Viewing | Live video capable | Approx Weight |
| SCMAT-P10-2.9w-0.9h | 2880 | 960 | 288 x 96 | 40m | No | 120kg |
| SCMAT-P10-2.9w-1.9h | 2880 | 1920 | 288 x 192 | 70m | No | 253kg |
| SCMAT-P10-2.9w-3.8h | 2880 | 3840 | 288 x 384 | 70m | No | 507kg |
| SCMAT-P10-3.8w-1.9h | 3840 | 1920 | 384 x 192 | 80m | No | 332kg |
| SCMAT-P10-3.8w-2.9h | 3840 | 2880 | 384 x 288 | 80m | Yes | 507kg |
| SCMAT-P10-3.8w-3.8h | 3840 | 3840 | 384 x 384 | 80m | No | 664kg |
| SCMAT-P10-3.8w-4.8h | 3840 | 4800 | 384 x 480 | 80m | No | 839kg |
| SCMAT-P10-4.8w-1.9h | 4800 | 1920 | 480 x 192 | 80m | No | 420kg |
| SCMAT-P10-4.8w-2.9h | 4800 | 2880 | 480 x 288 | 80m | Yes | 640kg |
| SCMAT-P10-4.8w-3.8h | 4800 | 3840 | 480 x 384 | 100m | Yes | 839kg |
| SCMAT-P10-5.8w-1.9h | 5760 | 1920 | 576 x 192 | 100m | No | 507kg |
| SCMAT-P10-5.8w-2.9h | 5760 | 2880 | 576 x 288 | 100m | Yes | 774kg |
| SCMAT-P10-5.8w-3.8h | 5760 | 3840 | 576 x 384 | 130m | Yes | 1013kg |
| SCMAT-P10-6.7w-2.9h | 6720 | 2880 | 672 x 288 | 130m | Yes | 894kg |
| SCMAT-P10-6.7w-3.8h | 6720 | 3840 | 672 x 384 | 130m | Yes | 1171kg |
| SCMAT-P10-6.7w-4.8h | 6720 | 4800 | 672 x 480 | 150m | Yes | 1479kg |
| SCMAT-P10-7.7w-2.9h | 7680 | 2880 | 768 x 288 | 150m | Yes | 1027kg |
| SCMAT-P10-7.7w-3.8h | 7680 | 3840 | 768 x 384 | 150m | Yes | 1346kg |
| SCMAT-P10-7.7w-4.8h | 7680 | 4800 | 768 x 480 | 150m | Yes | 1700kg |
| SCMAT-P10-7.7w-5.8h | 7680 | 5760 | 768 x 576 | 150m | Yes | 2054kg |
| SCMAT-P10-8.6w-3.8h | 8640 | 3840 | 864 x 384 | 150m | Yes | 1503kg |
| SCMAT-P10-8.6w-4.8h | 8640 | 4800 | 864 x 480 | 180m | Yes | 1899kg |
| SCMAT-P10-8.6w-5.8h | 8640 | 5760 | 864 x 576 | 180m | Yes | 2294kg |
| SCMAT-P10-9.6w-4.8h | 9600 | 4800 | 960 x 480 | 180m | Yes | 2120kg |
| SCMAT-P10-9.6w-5.8h | 9600 | 5760 | 960 x 576 | 200m | Yes | 2561kg |
| SCMAT-P10-9.6w-6.7h | 9600 | 6720 | 960 x 672 | 200m | Yes | 2959kg |
| SCMAT-P10-9.6w-7.7h | 9600 | 7680 | 960 x 768 | 200m | Yes | 3400kg |
| SCMAT-P10-10.6w-5.8h | 10560 | 5760 | 1056 x 576 | 200m | Yes | 2828kg |
| SCMAT-P10-10.6w-6.7h | 10560 | 6720 | 1056 x 672 | 200m | Yes | 3267kg |
| SCMAT-P10-10.6w-7.7h | 10560 | 7680 | 1056 x 768 | 220m | Yes | 3755kg |
| SCMAT-P10-11.5w-6.7h | 11520 | 6720 | 1152 x 672 | 220m | Yes | 3544kg |
| SCMAT-P10-11.5w-7.7h | 11520 | 7680 | 1152 x 768 | 220m | Yes | 4073kg |
| SCMAT-P10-11.5w-8.6h | 11520 | 8640 | 1152 x 864 | 220m | Yes | 4549kg |
| SCMAT-P10-12.5w-7.7h | 12480 | 7680 | 1248 x 768 | 220m | Yes | 4428kg |
| SCMAT-P10-12.5w-8.6h | 12480 | 8640 | 1248 x 864 | 220m | Yes | 4945kg |
| SCMAT-P10-13.4w-7.7h | 13440 | 7680 | 1344 x 768 | 220m | Yes | 4746kg |
| SCMAT-P10-13.4w-8.6h | 13440 | 8640 | 1344 x 864 | 220m | Yes | 5301kg |
- Multi-sport software.
- Support structure.
- Installation.
- External 12v siren.
- Add an additional character board to your scoring or entertainment system.
- Multiple screen solutions.
- Customised layout and orientation of scoreboard.
All our LED screens are programmable to be multi-functional displays. LED screens can be used for various activities including:
- Sport Scoreboards.
- AFL
- Football
- Hockey
- Basketball
- Cricket
- Netball
- Rugby Union
- Rugby League
- Volleyball
- Waterpolo
- Aquatic
- Athletics
- Baseball
- Tennis
- Indoor Sports
- Information Display.
- Entertainment Display.
- Advertising Display.
- Sponsorship Display.
LED Technology Ahead Of The Game, So You Can Be Too!
Learn About Our LED Scoreboards
Our products are designed and manufactured to withstand extreme conditions.
