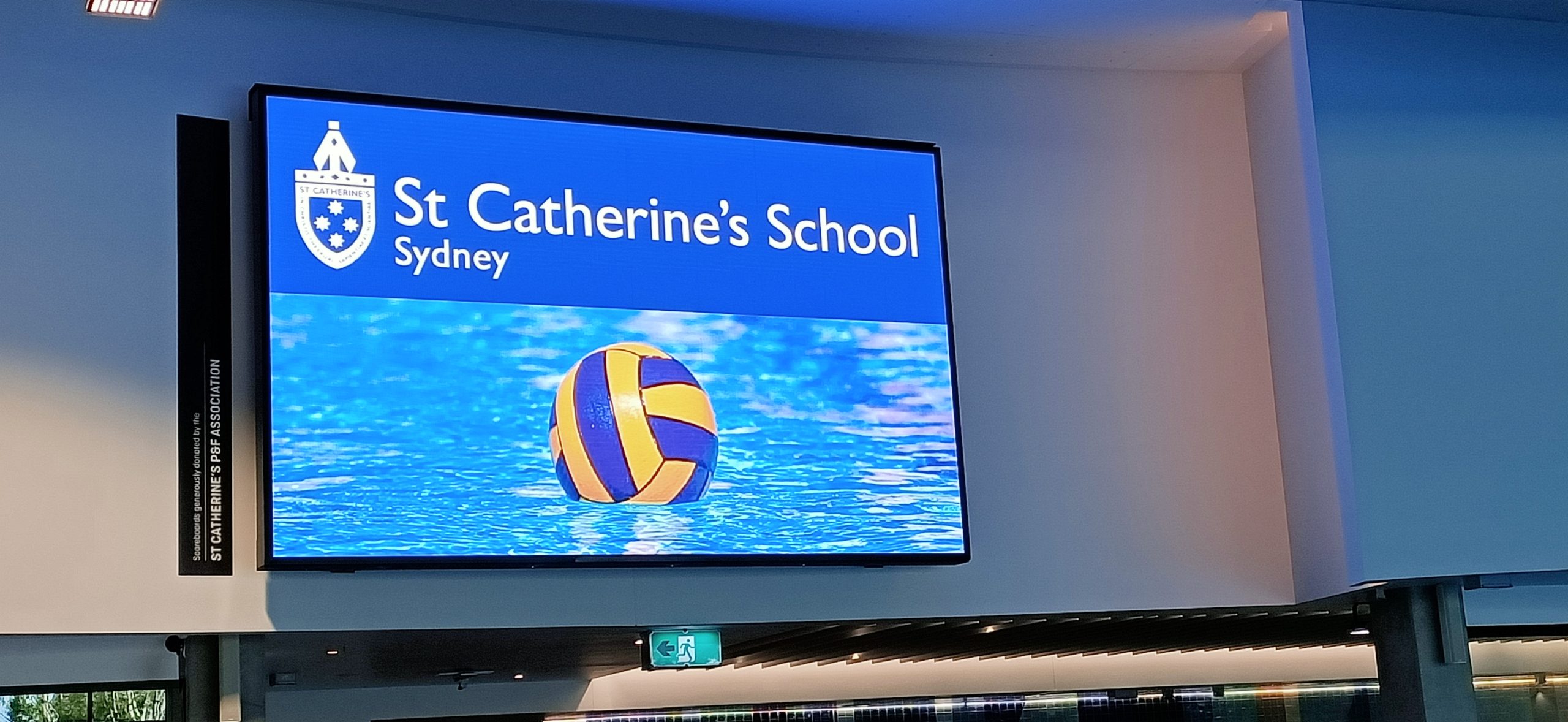

St Catherine's School Sydney
St Catherine's

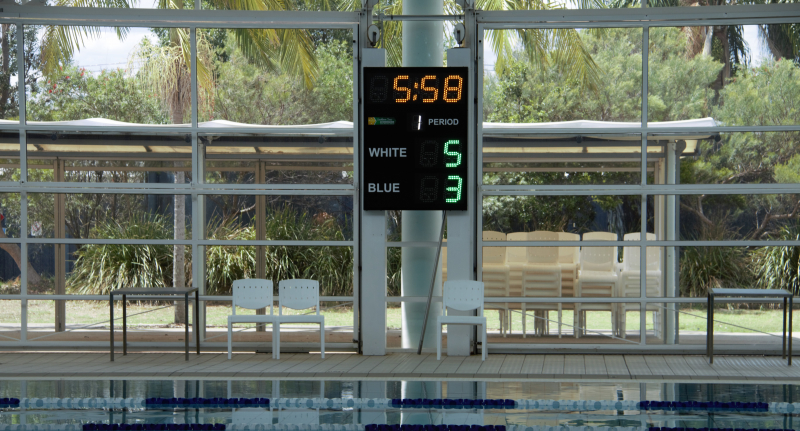

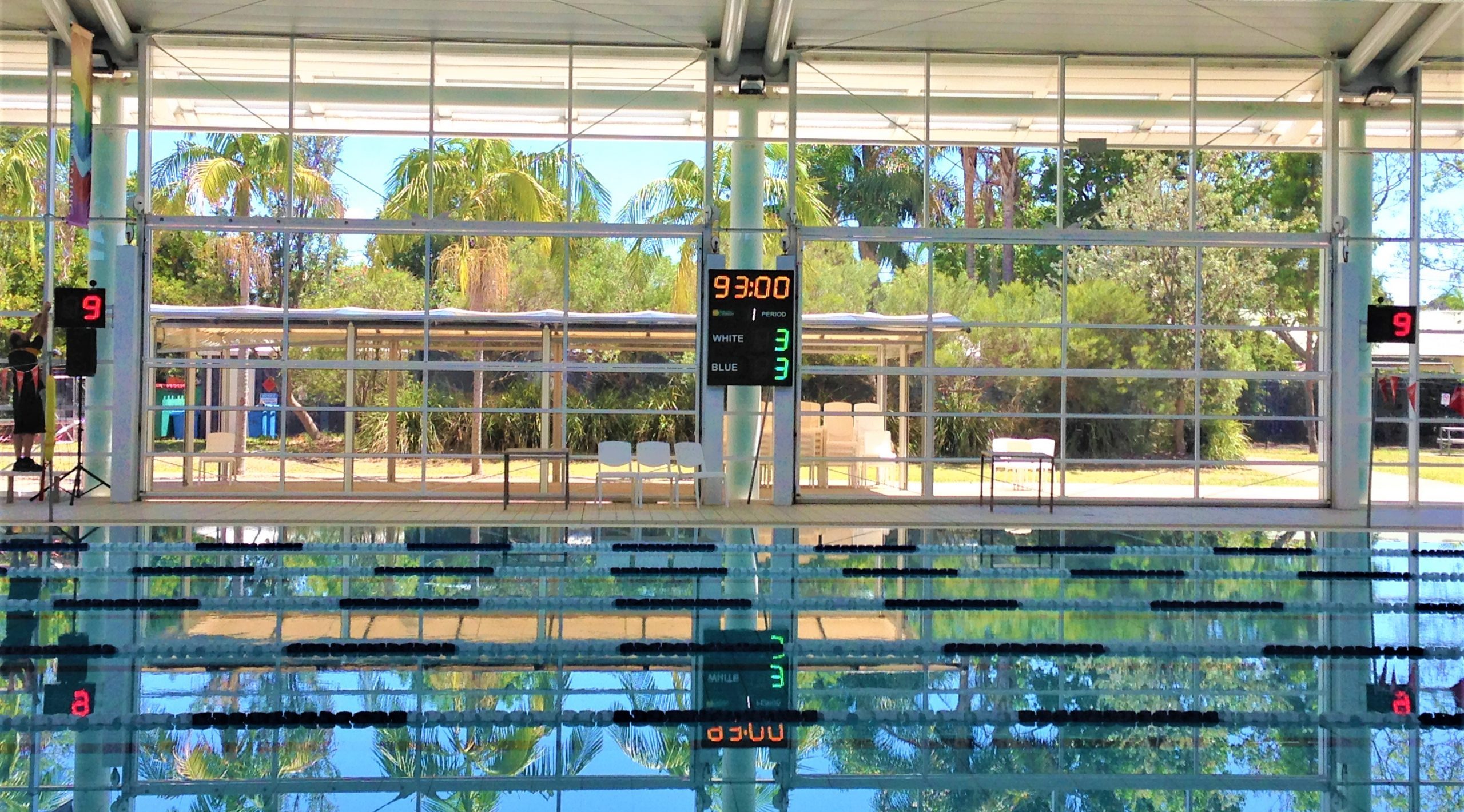

Woy Woy Leisure Centre

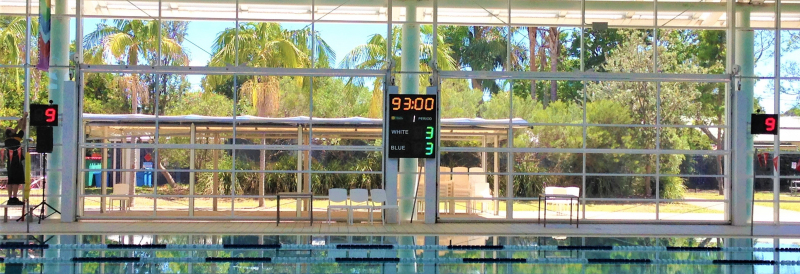

Woy Woy Leisure Centre Main
Make every moment a proud scoreboard moment.
For your Water Polo centre we have a variety of options!
Choose from a standard sports scoreboard with just game scores or a Water Polo scoreboard LED screen with the ability to display scores, leisure centre information and advertising! Our electronic Water Polo scoreboards are coated in an IP-65 waterproof film and are programmed with cutting edge technology ensuring longevity and durability of the scoreboard. Not only will your scoreboard last the test of time but it will compliment your centre and support your local team as well!
Water Polo Scoreboard Range
Model: SCWP-SO
Water Polo Scoreboard with Home and Visitor scores to 99.
- Team scores to 99.
- Vinyl sign writing LIGHT, DARK, SCORE (optional modifications).
- Premium multi-colour LED technology.

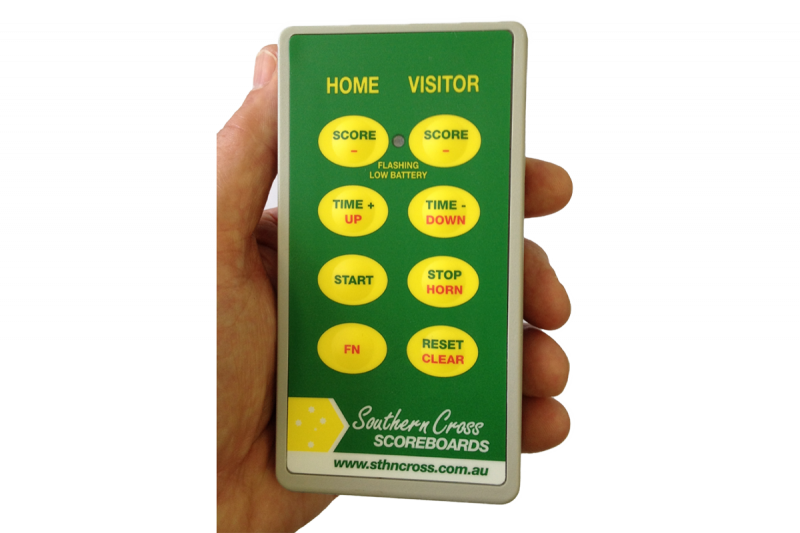

- Control via wireless remote control.
- Weatherproof durable powder coated aluminium enclosure.
- Vandal resistant polycarbonate front window.
- Internal access via removable front window from the right hand end.
- Optional inclusion 12v external siren.
| MODEL | Scores Height | Dimensions (mm) | Max Viewing | Approx Weight |
| SCWP-100-SO | 100 mm | 1100 x 400 | 50 m | TBC |
| SCWP-150-SO | 150 mm | 1400 x 500 | 75 m | TBC |
| SCWP-265-SO | 265 mm | 2400 x 750 | 100 m | TBC |
| SCWP-300-SO | 300 mm | 2400 x 750 | 150 m | TBC |
- Personalise with a vinyl club or sponsorship logo.
- External 12v siren.
- External weatherproof powerpoint.
- Trolley mounted.
- Battery powered.
- Scrolling LED message area.
- Customised layout and orientation of scoreboard.
This scoreboard can be programmed to be multi-functional with the below sports:
- AFL
- Football
- Hockey
- Netball
- Rugby Union
- Rugby League
- Volleyball
- WaterPolo

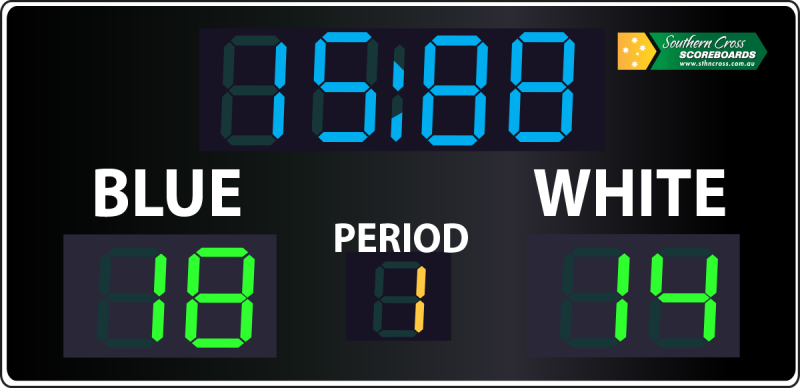

Model: SCWP-A
Water Polo Scoreboard with Home and Visitor scores to 99 with game clock and period, layout A.
- A 4 digit resettable Game Clock with minute and second adjustments.
- Team scores to 99.
- Period to 9.
- Vinyl sign writing LIGHT, DARK, PERIOD (optional modifications).
- Premium multi-colour LED technology.
- Control via wireless remote control.
- Weatherproof durable powder coated aluminium enclosure.
- Vandal resistant polycarbonate front window.
- Internal access via removable front window from the right hand end.
- Optional inclusion 12v internal siren.
| MODEL | Scores Height | Dimensions (mm) | Max Viewing | Approx Weight |
| SCWP-100-A | 100 mm | 1000 x 600 | 50 m | 30 kg |
| SCWP-150-A | 150 mm | 1250 x 650 | 75 m | 40 kg |
| SCWP-265-A | 265 mm | 2000 x 950 | 100 m | 80 kg |
| SCWP-300-A | 300 mm | 2000 x 1000 | 150 m | 90 kg |
| SCWP-380-A | 380 mm | 2500 x 1200 | 190 m | 120 kg |
- Personalise with a vinyl club or sponsorship logo.
- Internal 12v siren.
- External weatherproof powerpoint.
- Trolley mounted.
- Battery powered.
- Scrolling LED message area.
- Customised layout and orientation of scoreboard.
This scoreboard can be programmed to be multi-functional with the below sports:
- Netball
- Volleyball
- WaterPolo
- Indoor Sport

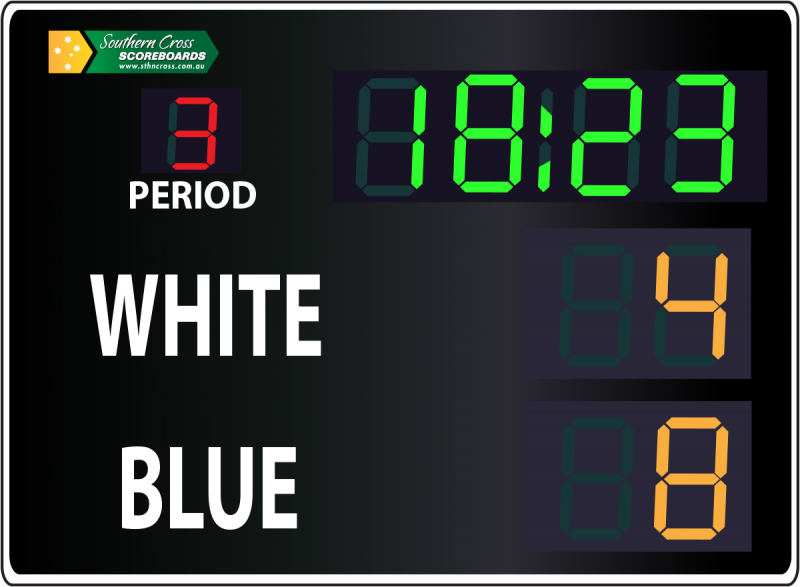

Model: SCWP-B
Water Polo Scoreboard with Home and Visitor scores to 99 with game clock and period, layout B.
- A 4 digit resettable Game Clock with minute and second adjustments.
- Team scores to 99.
- Period to 9.
- Vinyl sign writing LIGHT, DARK, PERIOD (optional modifications).
- Premium multi-colour LED technology.
- Control via wireless remote control.
- Weatherproof durable powder coated aluminium enclosure.
- Vandal resistant polycarbonate front window.
- Internal access via removable front window from the right hand end.
- Optional inclusion 12v internal siren.
| MODEL | Scores Height | Dimensions (mm) | Max Viewing | Approx Weight |
| SCWP-150-B | 150 mm | 1200 x 1000 | 75 m | 30 kg |
| SCWP-265-B | 265 mm | 1800 x 1200 | 100 m | 60 kg |
| SCWP-300-B | 300 mm | 2000 x 1500 | 150 m | 80 kg |
| SCWP-380-B | 380 mm | 2000 x 1800 | 190 m | 100 kg |
| SCWP-500-B | 500 mm | 2400 x 2200 | 300 m | 130 kg |
- Personalise with a vinyl club or sponsorship logo.
- Internal 12v siren.
- External weatherproof powerpoint.
- Trolley mounted.
- Battery powered.
- Scrolling LED message area.
- Customised layout and orientation of scoreboard.
This scoreboard can be programmed to be multi-functional with the below sports:
- Netball
- Volleyball
- WaterPolo
Model: SCWP-A-N
Water Polo Scoreboard with Home and Visitor scores to 99 with game clock and period, with LED team names, layout A.
- A 4 digit resettable Game Clock with minute and second adjustments.
- Team scores to 99.
- Period to 9.
- Electronic LED team names (Team names stored to scoreboard memory).
- Vinyl sign writing PERIOD (optional modifications).
- Premium multi-colour LED technology.
- Control via wireless remote control.
- Weatherproof durable powder coated aluminium enclosure.
- Vandal resistant polycarbonate front window.
- Internal access via removable front window from the right hand end.
- Optional inclusion 12v internal siren.
| MODEL | Scores Height | Team Name Height | Dimensions (mm) | Max Viewing | Approx Weight |
| SCWP-265-A-N150 | 265 mm | 150 mm | 2000 x 950 | 100 m | 90 kg |
| SCWP-300-A-N150 | 300 mm | 150 mm | 2000 x 1000 | 150 m | 100 kg |
| SCWP-380-A-N150 | 380 mm | 150 mm | 2500 x 1200 | 190 m | 120 kg |
- Personalise with a vinyl club or sponsorship logo.
- Internal 12v siren.
- External weatherproof powerpoint.
- Trolley mounted.
- Battery powered.
- Scrolling LED message area.
- Customised layout and orientation of scoreboard.
This scoreboard can be programmed to be multi-functional with the below sports:
- Netball
- Volleyball
- WaterPolo

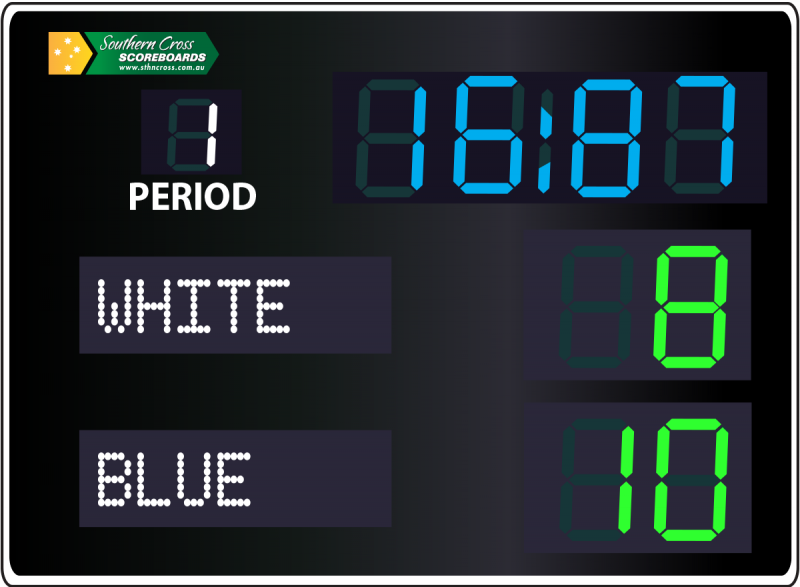

Model: SCWP-B-N
Water Polo Scoreboard with Home and Visitor scores to 99 with game clock and period, with LED team names, layout B.
- A 4 digit resettable Game Clock with minute and second adjustments.
- Team scores to 99.
- Period to 9.
- Electronic LED team names (Team names stored to scoreboard memory).
- Vinyl sign writing PERIOD (optional modifications).
- Premium multi-colour LED technology.
- Control via wireless remote control.
- Weatherproof durable powder coated aluminium enclosure.
- Vandal resistant polycarbonate front window.
- Internal access via removable front window from the right hand end.
- Optional inclusion 12v Internal siren.
| MODEL | Scores Height | Team Name Height | Dimensions (mm) | Max Viewing | Approx Weight |
| SCWP-150-B-N150 | 150 mm | 150 mm | 1200 x 1000 | 75 m | 50 kg |
| SCWP-265-B-N150 | 265 mm | 150 mm | 1800 x 1200 | 100 m | 70 kg |
| SCWP-300-B-N150 | 300 mm | 150 mm | 2000 x 1500 | 150 m | 100 kg |
| SCWP-380-B-N150 | 380 mm | 150 mm | 2000 x 1800 | 190 m | 115 kg |
| SCWP-500-B-N150 | 500 mm | 150 mm | 2400 x 2200 | 300 m | 140 kg |
- Personalise with a vinyl club or sponsorship logo.
- Internal 12v siren.
- External weatherproof powerpoint.
- Trolley mounted.
- Battery powered.
- Scrolling LED message area.
- Customised layout and orientation of scoreboard.
This scoreboard can be programmed to be multi-functional with the below sports:
- Netball
- Volleyball
- WaterPolo

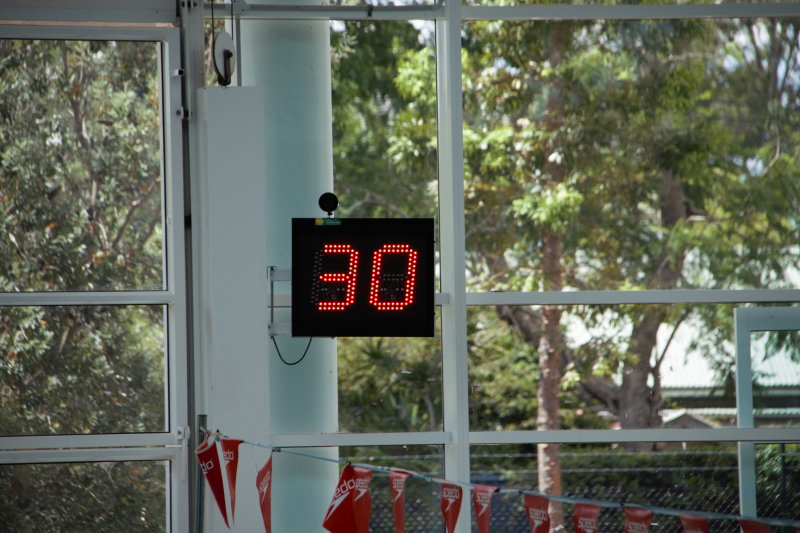

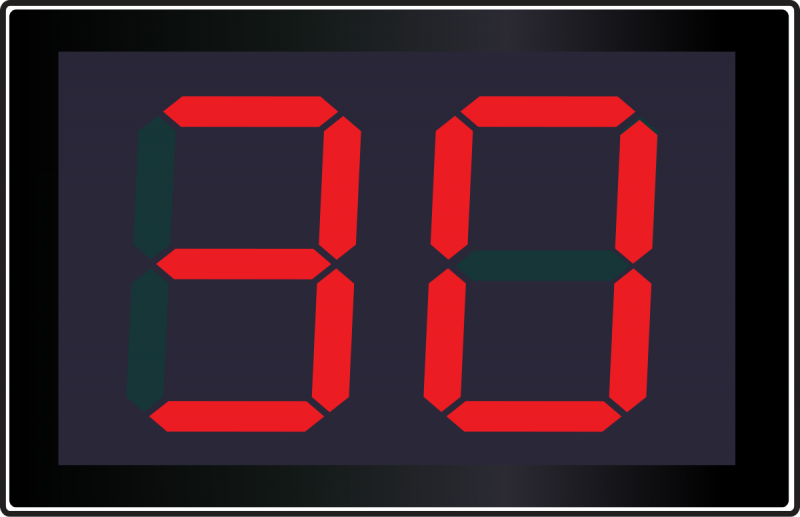

Model: SCWP-SC
Water Polo Shot Clocks; 2 x 30 seconds.
- Two resettable Shot Clocks to 30 seconds.
- External data cable input.
- Two, 3 metre data test cables to link to main scoreboard.
- Control via main scoreboard console.
- Premium multi-colour LED technology.
- Weatherproof durable powder coated aluminium enclosure.
- Vandal resistant polycarbonate front window.
- Internal access via removable front window from the right hand end.
| MODEL | Shot Clock Height | Dimensions (mm) | Max Viewing | Approx Weight |
| SCWP-SC150 | 150 mm | 300 x 400 | 75 metres | TBC |
| SCWP-SC265 | 265 mm | 700 x 500 | 100 metres | TBC |
| SCWP-SC300 | 300 mm | 700 x 500 | 150 metres | TBC |
- Add game clock to shot clock display.
- External weatherproof powerpoint.
- Battery powered.
Model: SCMAT-P7
Water Polo LED Screen Scoreboard.
- Southern Cross Water Polo scoring software.
- Multi-functional use software for scoring, information display, advertising, and entertainment.
- LED screen control computing system.
- Premium multi colour SMD LED technology.
- Brightness to 6000nits.
- Full sunlight visibility.
- Weatherproof durable powder coated aluminium enclosure.
- IP-65 protective waterproof mask coated on front LED’s. Protected against pool environments.
- Optional inclusion 12v internal siren.
| MODEL | Width (mm) | Height (mm) | Resolution (px) | Max Viewing | Live video capable | Approx Weight |
| SCMAT-P7-xw-1h | x | 1000 | X x 143 | 40m | No | NA |
| SCMAT-P7-2w-1h | 2000 | 1000 | 286 x 143 | 40m | No | 60kg |
| SCMAT-P7-2w-1.5h | 2000 | 1500 | 286 x 214 | 70m | No | 90kg |
| SCMAT-P7-3w-1h | 3000 | 1000 | 429 x 143 | 70m | No | 90kg |
| SCMAT-P7-3w-1.5h | 3000 | 1500 | 429 x 214 | 80m | Yes | 135kg |
| SCMAT-P7-3w-2h | 3000 | 2000 | 429 x 286 | 80m | Yes | 180kg |
| SCMAT-P7-3.5w-1.5h | 3500 | 1500 | 500 x 214 | 80m | Yes | 158kg |
| SCMAT-P7-3.5w-2h | 3500 | 2000 | 500 x 286 | 80m | Yes | 210kg |
| SCMAT-P7-4w-1.5h | 4000 | 1500 | 571 x 214 | 80m | Yes | 180kg |
| SCMAT-P7-4w-2h | 4000 | 2000 | 571 x 286 | 80m | Yes | 240kg |
| SCMAT-P7-4w-2.5h | 4000 | 2500 | 571 x 357 | 100m | 1Yes | 300kg |
| SCMAT-P7-4.5w-2h | 4500 | 2000 | 643 x 286 | 100m | Yes | 270kg |
| SCMAT-P7-4.5w-2.5h | 4500 | 2500 | 643 x 357 | 100m | Yes | 338kg |
| SCMAT-P7-4.5w-3h | 4500 | 3000 | 643 x 429 | 130m | Yes | 405kg |
| SCMAT-P7-5w-2.5h | 5000 | 2500 | 714 x 357 | 130m | Yes | 375kg |
| SCMAT-P7-5w-3h | 5000 | 3000 | 714 x 429 | 130m | Yes | 450kg |
| SCMAT-P7-6w-3h | 6000 | 3000 | 857 x 429 | 150m | Yes | 540kg |
| SCMAT-P7-6w-4h | 6000 | 4000 | 857 x 571 | 150m | Yes | 720kg |
| SCMAT-P7-6w-5h | 6000 | 5000 | 857 x 714 | 150m | Yes | 900kg |
| SCMAT-P7-7w-3h | 7000 | 3000 | 1000 x 429 | 150m | Yes | 630kg |
| SCMAT-P7-7w-4h | 7000 | 4000 | 1000 x 571 | 150m | Yes | 840kg |
| SCMAT-P7-7w-5h | 7000 | 5000 | 1000 x 714 | 150m | Yes | 1050kg |
| SCMAT-P7-8w-4h | 8000 | 4000 | 1143 x 571 | 180m | Yes | 960kg |
| SCMAT-P7-8w-5h | 8000 | 5000 | 1143 x 714 | 180m | Yes | 1200kg |
| SCMAT-P7-8w-6h | 8000 | 6000 | 1143 x 857 | 180m | Yes | 1440kg |
| SCMAT-P7-9w-5h | 9000 | 5000 | 1286 x 714 | 180m | Yes | 1350kg |
| SCMAT-P7-9w-6h | 9000 | 6000 | 1286 x 857 | 180m | Yes | 1620kg |
| SCMAT-P7-10w-5h | 10000 | 5000 | 1429 x 714 | 180m | Yes | 1500kg |
| SCMAT-P7-10w-6h | 10000 | 6000 | 1429 x 857 | 180m | Yes | 1800kg |
| SCMAT-P7-10w-7h | 10000 | 7000 | 1429 x 1000 | 180m | Yes | 2100kg |
| SCMAT-P7-11w-5h | 11000 | 5000 | 1571 x 714 | 180m | Yes | 1650kg |
| SCMAT-P7-11w-6h | 11000 | 6000 | 1571 x 857 | 200m | Yes | 1980kg |
| SCMAT-P7-11w-7h | 11000 | 7000 | 1571 x 1000 | 200m | Yes | 2310kg |
| SCMAT-P7-11w-8h | 11000 | 8000 | 1571 x 1143 | 200m | Yes | 2640kg |
- Multi-sport software.
- Support structure.
- Installation.
- Internal 12v siren.
- Add an additional character board to your scoring or entertainment system.
- Multiple screen solutions.
- Customised layout and orientation of scoreboard.
All our LED screens are programmable to be multi-functional displays. LED screens can be used for various activities including:
- Sport Scoreboards.
- AFL
- Football
- Hockey
- Basketball
- Cricket
- Netball
- Rugby Union
- Rugby League
- Volleyball
- Waterpolo
- Aquatic
- Athletics
- Baseball
- Tennis
- Indoor Sports
- Information Display.
- Entertainment Display.
- Advertising Display.
- Sponsorship Display.
Model: SCMAT-P4
Water Polo LED Screen Scoreboard.
- Southern Cross Water Polo scoring software.
- Multi-functional use software for scoring, information display, advertising, and entertainment.
- LED screen control computing system.
- Premium multi colour SMD LED technology.
- Brightness to 900nits.
- Full sunlight visibility.
- Weatherproof durable powder coated aluminium enclosure.
- IP-65 protective waterproof mask coated on front LED’s. Protected against pool environments.
- Optional inclusion 12v internal siren.
| MODEL | Width (mm) | Height (mm) | Resolution (px) | Max Viewing | Live video capable | Approx Weight |
| SCMAT-P4-xw-1h | x | 1000 | X x 250 | 40m | No | NA |
| SCMAT-P4-2w-1h | 2000 | 1000 | 500 x 250 | 40m | No | 60kg |
| SCMAT-P4-2w-1.5h | 2000 | 1500 | 500 x 375 | 70m | No | 90kg |
| SCMAT-P4-3w-1h | 3000 | 1000 | 750 x 250 | 70m | No | 90kg |
| SCMAT-P4-3w-1.5h | 3000 | 1500 | 750 x 375 | 80m | Yes | 135kg |
| SCMAT-P4-3w-2h | 3000 | 2000 | 750 x 500 | 80m | Yes | 180kg |
| SCMAT-P4-3.5w-1.5h | 3500 | 1500 | 875 x 375 | 80m | Yes | 158kg |
| SCMAT-P4-3.5w-2h | 3500 | 2000 | 875 x 500 | 80m | Yes | 210kg |
| SCMAT-P4-4w-1.5h | 4000 | 1500 | 1000 x 375 | 80m | Yes | 180kg |
| SCMAT-P4-4w-2h | 4000 | 2000 | 1000 x 500 | 80m | Yes | 240kg |
| SCMAT-P4-4w-2.5h | 4000 | 2500 | 1000 x 625 | 100m | Yes | 300kg |
| SCMAT-P4-4.5w-2h | 4500 | 2000 | 1125 x 500 | 100m | Yes | 270kg |
| SCMAT-P4-4.5w-2.5h | 4500 | 2500 | 1125 x 625 | 100m | Yes | 338kg |
| SCMAT-P4-4.5w-3h | 4500 | 3000 | 1125 x 750 | 130m | Yes | 405kg |
| SCMAT-P4-5w-2.5h | 5000 | 2500 | 1250 x 625 | 130m | Yes | 375kg |
| SCMAT-P4-5w-3h | 5000 | 3000 | 1250 x 750 | 130m | Yes | 450kg |
| SCMAT-P4-6w-3h | 6000 | 3000 | 1500 x 750 | 150m | Yes | 540kg |
| SCMAT-P4-6w-4h | 6000 | 4000 | 1500 x 1000 | 150m | Yes | 720kg |
| SCMAT-P4-6w-5h | 6000 | 5000 | 1500 x 1250 | 150m | Yes | 900kg |
| SCMAT-P4-7w-3h | 7000 | 3000 | 1750 x 750 | 150m | Yes | 630kg |
| SCMAT-P4-7w-4h | 7000 | 4000 | 1750 x 1000 | 150m | Yes | 840kg |
| SCMAT-P4-7w-5h | 7000 | 5000 | 1750 x 1250 | 150m | Yes | 1050kg |
| SCMAT-P4-8w-4h | 8000 | 4000 | 2000 x 1000 | 180m | Yes | 960kg |
| SCMAT-P4-8w-5h | 8000 | 5000 | 2000 x 1250 | 180m | Yes | 1200kg |
| SCMAT-P4-8w-6h | 8000 | 6000 | 2000 x 1500 | 180m | 1Yes | 1440kg |
| SCMAT-P4-9w-5h | 9000 | 5000 | 2250 x 1250 | 180m | Yes | 1350kg |
| SCMAT-P4-9w-6h | 9000 | 6000 | 2250 x 1500 | 180m | Yes | 1620kg |
| SCMAT-P4-10w-5h | 10000 | 5000 | 2500 x 1250 | 180m | Yes | 1500kg |
| SCMAT-P4-10w-6h | 10000 | 6000 | 2500 x 1500 | 180m | Yes | 1800kg |
| SCMAT-P4-10w-7h | 10000 | 7000 | 2500 x 1750 | 180m | Yes | 2100kg |
| SCMAT-P4-11w-5h | 11000 | 5000 | 2750 x 1250 | 180m | Yes | 1650kg |
| SCMAT-P4-11w-6h | 11000 | 6000 | 2750 x 1500 | 200m | Yes | 1980kg |
| SCMAT-P4-11w-7h | 11000 | 7000 | 2750 x 1750 | 200m | Yes | 2310kg |
| SCMAT-P4-11w-8h | 11000 | 8000 | 2750 x 2000 | 200m | Yes | 2640kg |
- Multi-sport software.
- Support structure.
- Installation.
- 12v Internal Siren
- Add an additional character board to your scoring or entertainment system.
- Multiple screen solutions.
- Customised layout and orientation of scoreboard.
All our LED screens are programmable to be multi-functional displays. LED screens can be used for various activities including:
- Sport Scoreboards.
- AFL
- Football
- Hockey
- Basketball
- Cricket
- Netball
- Rugby Union
- Rugby League
- Volleyball
- Waterpolo
- Aquatic
- Athletics
- Baseball
- Tennis
- Indoor Sports
- Information Display.
- Entertainment Display.
- Advertising Display.
- Sponsorship Display.
LED Technology Ahead Of The Game, So You Can Be Too!
Learn About Our LED Scoreboards
Our products are designed and manufactured to withstand extreme conditions.
Contact Us
Our professional staff are available to discuss your display requirements.
